ZUMAX

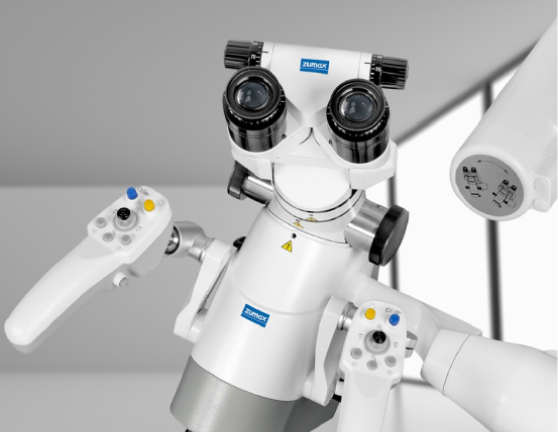

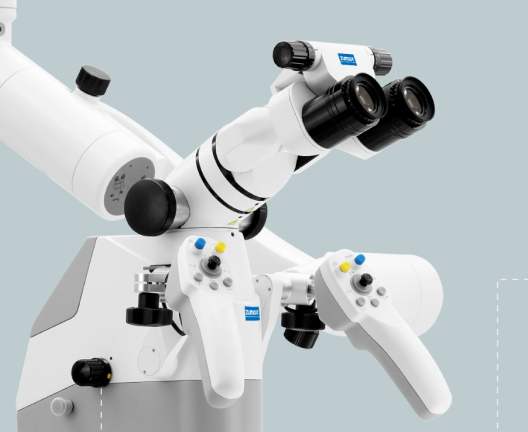

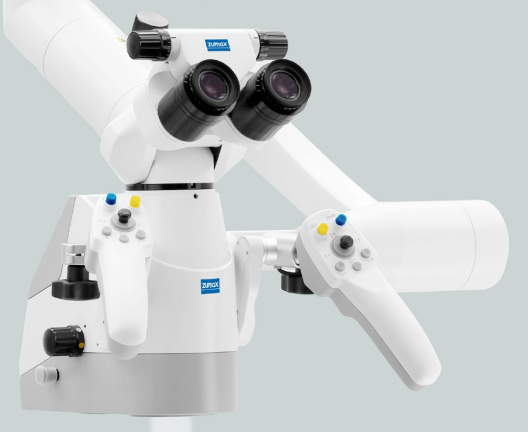

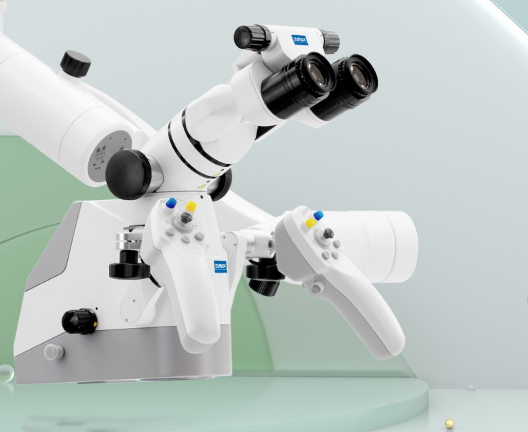

OMS 3200 Operating Microscope

The ZUMAX OMS 3200 are optical microscopes specially designed for use in surgery. High-class German optics allows you to see the dental surface and the structure of the tooth in great detail, which improves the quality of diagnosis and treatment. The ergonomic design of the microscope helps to maintain a comfortable working position, prevents the rapid development of fatigue and problems with the neck and back.

If you want to experience all the advantages of a high-class microscope designed for comfortable work of a doctor with excellent German optics, with motorized functions; to feel ergonomics and optimal integration with additional visualization capabilities, then hurry up to purchase a limited series of ZUMAX OMS 3200

Characteristics of the microscope:

• Built-in LED lighting system with the transmission of natural colors
• Built-in digital FULL HD video camera of the latest model with perfect color reproduction and high resolution
• Electrically operated Vario Dist lens lenses with an operating distance variable in the range of 200-450 mm
• Built-in SONY CMOS video camera with HDMI transmission to desktop and mobile devices
• Electrically driven image zoom system, with apochromatic lens
• Compactness, mobility, ease of use
• Smooth stepless magnification and motorized varioscope with a focal length of 200-450 mm

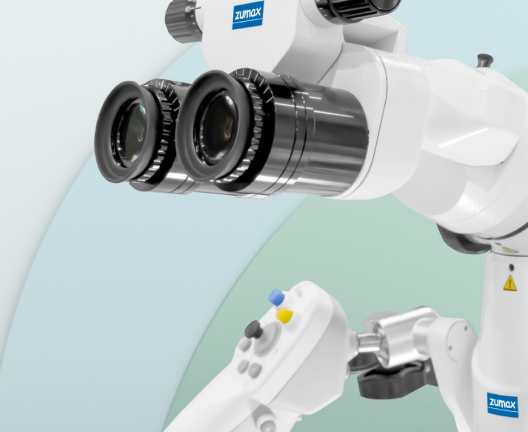

• Wide-field eyepieces 12.5x. The eyepieces are distinguished by the large diameter of the first lens
• The module of fluorescent illumination, which makes it possible to preserve the maximum of healthy tooth tissue. The microscope allows you to detect carious areas when removing dentin in a previously treated tooth and distinguish the natural hard tissue of the tooth from the most widely used photopolymer composite materials.

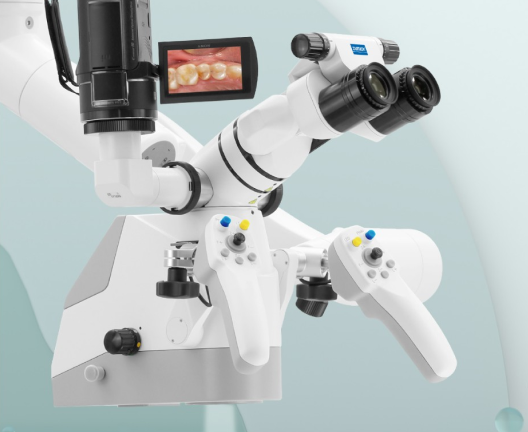

• High-resolution video system. Built-in 4K 1/1.2 inch SONY CMOS Video Camera with HDMI streaming to Desktop and Mobile devices
• The 25x magnification allows you to see the dental surface and the structure of the tooth in great detail. Visualization of details and the finest structures improves the quality of diagnosis and treatment

Bi Plus lighting system:

• Built-in LED lighting system with transmission of natural colors CT 5500 K/CRI 92>80,000 lux at a working distance of 250 mm
• Automatic intensity increase by 30% at maximum magnification, >105,000 lux
• The diameter of the illuminated spot in the range of 90 mm – 73 mm at a working distance of 250 mm
• Dual LEDs with the ability to switch. Yellow and green filters

Technical specifications:

• Magnification: 1.8x–19.4x with 12.5x eyepieces Magnification factor γ=0.4X – 2.4X11.6-124 mm with 12.5x eyepieces
• Varioobject: F=190-300 mm

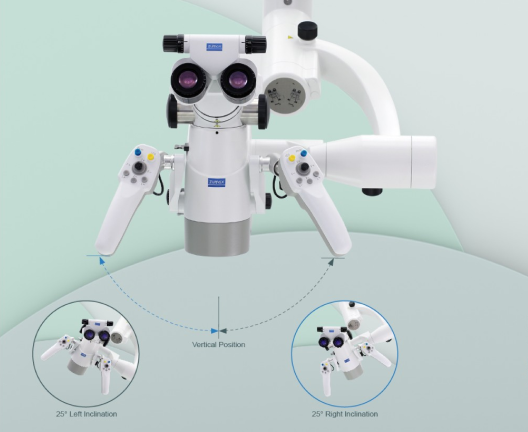

• Binoculars with variable tilt angle: 0⁰ — 180⁰
• Adjustment of the interpupillary distance: 170 mm
• Wide-field eyepieces: 12.5x
• Fine focus system

Equipment:

Basic

• Motorized magnification system with an apochromatic ratio of 1:6; magnification factor Y = 0.4x – 2.4x, magnification 1.8x-20x
• Varioscope with smooth motorized focusing and focal length from 200 to 450 mm

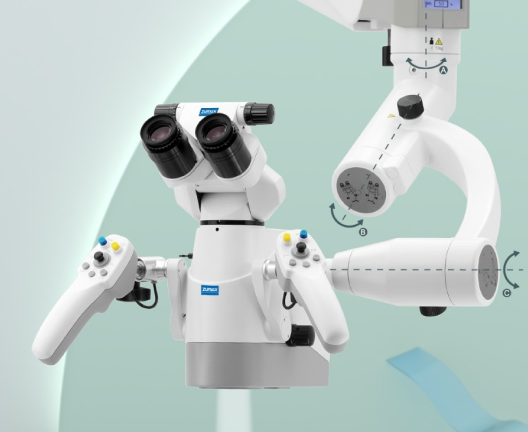

• Freemove Magnetic System

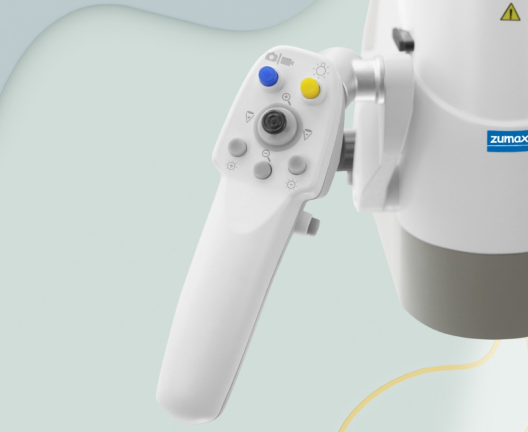

• Multifunctional control knobs
• Natural light module TruLED >105000 Lux and color rendering index CRI equal to 92
• BriPlusTM lighting system. Automatically increase the intensity by 30% at maximum magnification to get more light at high magnification
• Built-in coaxial backlight with cold light. Orange filter for working with composite materials. Green filter for contrast when working with soft fabrics
• Floor model, on wheels, ceiling model
• Protective sterilizable caps on handles
• Free photo-video apps for smartphones, tablets and computers
